Thyrotoxicosis
Toxic diffuse goitre (Graves’ Disease)
- Toxic diffuse goitre 1
- Toxic diffuse goitre 2
- Toxic diffuse goitre 3
- Toxic diffuse goitre 4
99m Tc Thyroid scan
Move your mouse over the images to see a larger version.
The 99m Tc thyroid scan in toxic diffuse goitre will show diffuse enlargement of the gland with diffusely increased uptake.
Note the diffusely enlarged gland with increased tracer uptake. Assymetry is often seen reflecting the assymetry of the normal gland.
99m Tc scan
Move your mouse over the images to see a larger version.
The 20 minute uptake value is generally above the normal range unless the patient has been on medical treatment before the scan is performed.
99m Tc Scan with 20min uptake graph
Move your mouse over the images to see a larger version.
In untreated Graves’ disease, the 20 min uptake is increased above the normal range (0.4-4%).
99m Tc Thyroid scan
Move your mouse over the images to see a larger version.

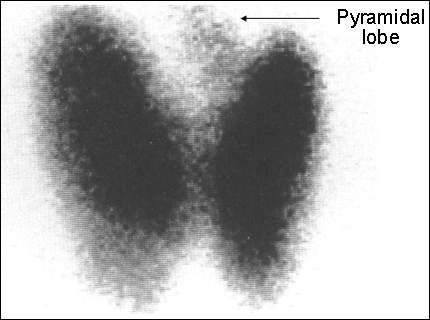

A pyramidal lobe is not uncommonly seen on the 99mTc scan of patients with toxic diffuse goitre.
